Husqvarna 701 Supermoto: guida completa basata sul libretto di uso e manutenzione
Questo articolo presenta una trattazione dettagliata della Husqvarna 701 Supermoto attingendo direttamente dal contenuto del libretto di uso e manutenzione 2018/2024, mantenendo intatta la formulazione originale delle frasi pertinenti e strutturando l’informazione in modo organico per chi cerca una comprensione approfondita del veicolo, della sua sicurezza, della preparazione all’uso e della manutenzione.
Riconoscimenti e scopo del manuale
Congratulations on your decision to purchase a Husqvarna motorcycle. You are now the owner of a state-of-the-art sports motorcycle that will give you enormous pleasure if you service and maintain it properly. Reproduction, even in part, as well as copying of all kinds, is permitted only with the express written permission of the copyright owner. ISO 9001(12 100 6061) Husqvarna Motorcycles applies quality assurance processes that lead to the highest possible product quality as defined in the ISO 9001 international quality management standard.
Issed by: TÜV Management Service Husqvarna Motorcycles GmbH Stallhofnerstraße 3...
VISTA DEL VEICOLO E RICONOSCIMENTI
The manual provides a view of vehicle, front left (example) with references to clutch lever, filler cap, grab handles, passenger footrest, side stand, seat unlocking, shift lever e altro. Chassis number, type label, key number e engine number sono posizionati in punti specifici per l’identificazione del modello e dei componenti.
Chassis number: The chassis number is stamped on the steering head on the right. The Europe type label is located on the right side of the frame. The Australia type label is located on the left side of the frame. The key number can be found on the KEYCODECARD; you need it to order a spare key. The engine number is stamped on the left side of the engine under the engine sprocket. Fork part number è stampato all’interno del fork stub. The shock absorber article number è sul lato sinistro della sospensione.
CONTROLLI E COMANDI
Clutch lever è montato sul manubrio a sinistra; la frizione è idraulica e regola automaticamente. Hand brake lever è sul lato destro; throttle grip sul lato destro; horn button sul lato sinistro; light switch sul lato sinistro; emergency OFF switch sul lato destro; Electric starter button sul lato destro; Ignition/steering lock si trova davanti al sellino.
Possibili stati e indicatori: Luci (low beam, high beam), indicatori di segnale, allarmi e luci di controllo della combinazione strumentale. Il sistema di avvio di emergenza spegne l’impianto in caso di spegnimento, e la combinazione strumentale si attiva premendo uno dei pulsanti o con l’impulso dal sensore di velocità.
Sicurezza e uso
Safety Advice: This vehicle has been designed and built to withstand the normal stresses and strains of road use. This vehicle is not suitable for use on race tracks or off-road. The vehicle is only authorized for operation on public roads in its homologated version. Tampering warning: Tampering with the noise control system is prohibited. It is essential to wear protective clothing that is in good condition and meets legal regulations.
Uso, preparazione e primo impiego
Preparing for use includes getting used to handling in a suitable area, riding slowly and in a standing position to gain a better feel for the motorcycle. The vehicle should be loaded with consideration to weight distribution: total weight includes motorcycle ready for operation with full fuel, rider and passenger with protective clothing and helmet, and luggage.
Loading the vehicle and securing luggage is important to avoid obstructing visibility or tail lights. Your authorized Husqvarna Motorcycles dealer will be glad to advise you on disposal and maintenance considerations, and the work prescribed in the service schedule must be carried out by an authorized Husqvarna Motorcycles workshop to maintain warranty.
MANUTENZIONE E SOSTITUZIONI
Service work on the chassis includes adjustments for the fork rebound damping, compression damping of the shock absorber, and adjustments of the basic position of the foot brake lever e del shift lever. The manual details processes for removing the rear wheel stand, raising the motorcycle with the rear lifting gear, and disassembly/reassembly of air filter, fuel system e coolant, with specific steps and torque specifications.
Engine work includes a broad set of instructions: changing the fuel screen, air filter, and oil; inspecting and replacing engine components; and guidance on replacing fuses, power consumers, and other electrical system elements. The standard emphasizes that many tasks require specialist knowledge and should be performed by an authorized Husqvarna workshop to avoid warranty voidance and to ensure safety.
SISTEMA E CONTROLLO ELETTRICO
The electric system comprises the ignition/steering lock, OBD diagnostics, warning lamps for coolant temperature, oil pressure, battery voltage, and various messages on the combination instrument. The manual specifies that the vehicle’s electrical system must be maintained by qualified technicians and that certain faults require prompt service by an authorized workshop.
STRUMENTAZIONE E FUNZIONI
The combination instrument provides indicators for speed, time, distance (DST1, DST2), average speed (AVG), operating hours (ART) e odometer (ODO). The device allows unit changes between KM/H e M/H, resetting of time, and extension of service intervals through menu navigation. The display includes warnings like “Battery voltage too low” and “Coolant temperature critical.”
SCARICHE D’USO E SICUREZZA DEL VEICOLO
Warnings regarding fuel handling: fuel is poisonous and a health hazard; avoid skin, eye and clothing contact; do not inhale vapors; wash in case of contact. The manual also notes that the vehicle’s tires must be approved by Husqvarna with appropriate speed indexes and that only authorized workshops should perform mandatory service. Use a proper license for public road operation and adhere to warning labels on the vehicle.
RIFERIMENTI E MATERIALI A MARGINE
Ciascun dettaglio di numero di parte (forcella, ammortizzatore, catena, fissaggi) è presentato per agevolare identificazione pezzi durante la manutenzione o la sostituzione. Si sottolinea che l’uso di strumenti speciali è necessario per alcune operazioni e che la gestione della catalisi e dei sistemi di silenziamento va trattata con cura per mantenere conformità normativa.

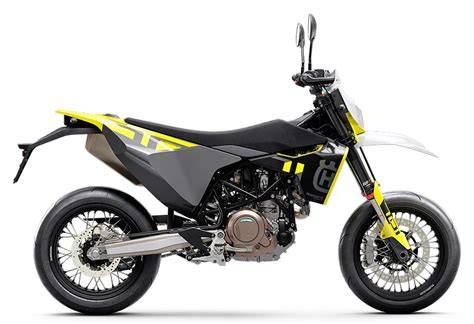

Per una rapida comprensione grafica, si può consultare uno schema di posizionamento di componenti come manettino della frizione, leve del freno, accensione e indicatori, utile durante interventi di manutenzione.
TEST Husqvarna 701 - "E' illegale! 😧 come me la fai provare questa moto!?😂"
Un video mirato può mostrare come controllare visivamente livelli e stato di usura, oltre a procedure di base per l’avvio, la corretta gestione delle condizioni stradali e la verifica periodica di componenti chiave.
TABELLE E DATI RIFERIMENTALI
Il materiale del manuale include informazioni tecniche su torque, componenti e procedure, che possono essereaggregate in tabelle per una consultazione rapida durante la manutenzione ordinaria e straordinaria.
